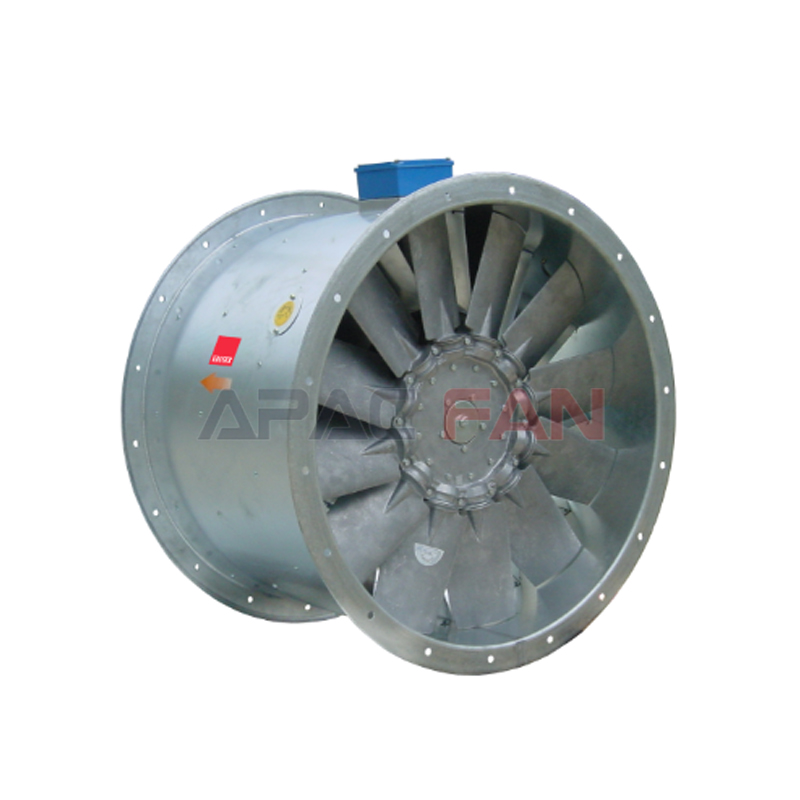

TDA-V Series - Vane Axial Fan - Direct Driven Type
Brand：
Kruger
Document：
Category：
Axial Fan
Description：
• Inlet and outlet duct connection flanges to connect circular duct to TDC flanges.
• Circular flexible duct connectors, both standard and high temperature variations (up to 400°C).
• Inlet and outlet safety guards.
• Vibration isolator mounts for floor or ceiling mounted installations.
• A drain coupling can be attached to the bottom of housing.
• Circular flexible duct connectors, both standard and high temperature variations (up to 400°C).
• Inlet and outlet safety guards.
• Vibration isolator mounts for floor or ceiling mounted installations.
• A drain coupling can be attached to the bottom of housing.
Nominal data
Brand：
Kruger
Part No.：
TDA-V Series
Fan Type：
Axial Fan
Rated Voltage(V)：
Size(mm)：
Max.Air Flow(m³/h)：
Max.Pressure(Pa)：
Input Power(W)：
Speed(rpm)：
Noise(db)：
Description
Quick Facts
• Size from 315 to 2000
• Capacity up to 360,000 m3/h
• Static pressure up to 1,000 Pa
• Suitable for clean air normal ventilation and smokespill application.
Operating Temperature
• Normal Ventilation: -20°C to +55°C
• High Temperature Application: available up to 400°C/2Hrs.
Motor
Totally enclosed Class 'F' or 'H', with a minimum IP55 protection are fitted as standard. Standard motor up to 2.2kW are supplied with DOL starting, motor 3.0kW and above are with star/delta starting. Motor of other specifications are available upon request.
